mkdir build
cd build
cmake ..

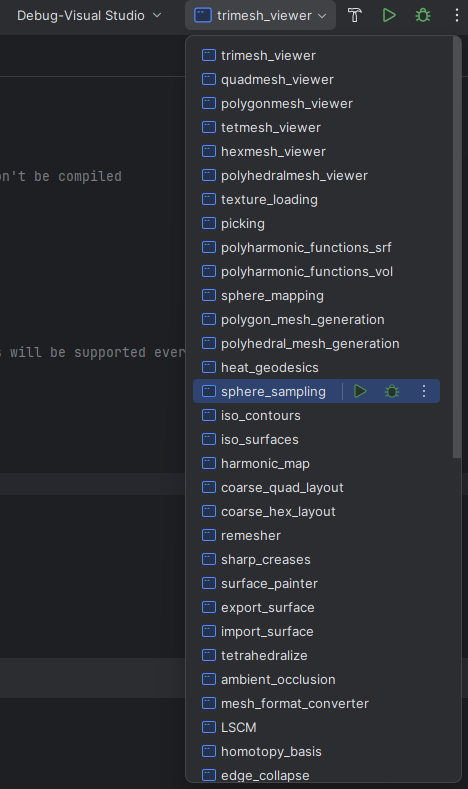

1

k

1
2

std::string s = (argc==2) ? std::string(argv[1]) : std::string(DATA_PATH) + "/bunny.obj";
DrawableTrimesh<> m(s.c_str());

1
2
3
4
5

template<class M = Mesh_std_attributes, // default template arguments
         class V = Vert_std_attributes,
         class E = Edge_std_attributes,
         class P = Polygon_std_attributes>
class DrawableTrimesh : public AbstractDrawablePolygonMesh<Trimesh<M,V,E,P>>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

struct Mesh_std_attributes
{
    std::string filename;
    bool        update_normals = true;
    bool        update_bbox    = true;
};

struct Vert_std_attributes
{
    vec3d          normal  = vec3d(0,0,0);
    Color          color   = Color::WHITE();
    vec3d          uvw     = vec3d(0,0,0);
    int            label   = -1;
    float          quality = 0.0;
    std::bitset<8> flags   = 0x00;
};

struct Edge_std_attributes
{
    Color          color = Color::BLACK();
    int            label = -1;
    std::bitset<8> flags = 0x00;
};

struct Polygon_std_attributes
{
    vec3d          normal  = vec3d(0,0,0);
    Color          color   = Color::WHITE();
    int            label   = -1;
    float          quality = 0.0;
    float          AO      = 1.0;
    std::bitset<8> flags   = 0x00;
};

1
2
3
4
5

template<class M = Mesh_std_attributes, // default template arguments
         class V = Vert_std_attributes,
         class E = Edge_std_attributes,
         class P = Polygon_std_attributes>
class Trimesh : public AbstractPolygonMesh<M,V,E,P>

1
2

DrawableTrimesh -> AbstractDrawablePolygonMesh<Trimesh> -> Mesh, DrawableObject

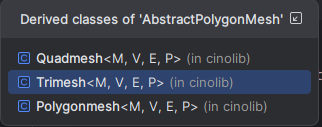

Trimesh -> AbstractPolygonMesh -> AbstractMesh

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

explicit DrawableTrimesh(const char * filename) : Trimesh<M,V,E,P>(filename)
{
  this->init_drawable_stuff();
}

template<class M, class V, class E, class P>
Trimesh<M,V,E,P>::Trimesh(const char * filename)
{
    this->load(filename);
}

template<class M, class V, class E, class P>
void AbstractPolygonMesh<M,V,E,P>::load(const char * filename)
{
    this->clear();
    this->mesh_data().filename = std::string(filename);

    std::vector<vec3d>             pos;      // vertex xyz positions
    std::vector<vec3d>             tex;      // vertex uv(w) texture coordinates
    std::vector<vec3d>             nor;      // vertex normals
    std::vector<std::vector<uint>> poly_pos; // polygons with references to pos
    std::vector<std::vector<uint>> poly_tex; // polygons with references to tex
    std::vector<std::vector<uint>> poly_nor; // polygons with references to nor
    std::vector<Color>             poly_col; // per polygon colors
    std::vector<int>               poly_lab; // per polygon labels

    std::string str(filename);
    std::string filetype = str.substr(str.size()-4,4);

    if (filetype.compare(".off") == 0 ||
        filetype.compare(".OFF") == 0)
    {
        read_OFF(filename, pos, poly_pos, poly_col);
    }
    else if (filetype.compare(".obj") == 0 ||
             filetype.compare(".OBJ") == 0)
    {
        //read_OBJ(filename, pos, poly_pos);
        read_OBJ(filename, pos, tex, nor, poly_pos, poly_tex, poly_nor, poly_col, poly_lab);
    }
    else if (filetype.compare(".stl") == 0 ||
             filetype.compare(".STL") == 0)
    {
        std::vector<uint> tris;
        read_STL(filename, pos, tris);
        poly_pos = polys_from_serialized_vids(tris, 3);
    }
    else
    {
        std::cerr << "ERROR : " << __FILE__ << ", line " << __LINE__ << " : load() : file format not supported yet " << std::endl;
    }

    init(pos, tex, nor, poly_pos, poly_tex, poly_nor, poly_col, poly_lab);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

void read_OBJ(const char                     * filename,
              std::vector<vec3d>             & pos,         // vertex xyz positions
              std::vector<vec3d>             & tex,         // vertex uv(w) texture coordinates
              std::vector<vec3d>             & nor,         // vertex normals
              std::vector<std::vector<uint>> & poly_pos,    // polygons with references to pos
              std::vector<std::vector<uint>> & poly_tex,    // polygons with references to tex
              std::vector<std::vector<uint>> & poly_nor,    // polygons with references to nor
              std::vector<Color>             & poly_col,    // per polygon colors
              std::vector<int>               & poly_lab)    // per polygon labels (OBJ groups)
{
    std::string  diffuse_path;
    std::string  specular_path;
    std::string  normal_path;
    read_OBJ(filename, pos, tex, nor, poly_pos, poly_tex, poly_nor, poly_col, poly_lab, diffuse_path, specular_path, normal_path);
}

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133

void read_OBJ(const char                     * filename,
              std::vector<vec3d>             & pos,           // vertex xyz positions
              std::vector<vec3d>             & tex,           // vertex uv(w) texture coordinates
              std::vector<vec3d>             & nor,           // vertex normals
              std::vector<std::vector<uint>> & poly_pos,      // polygons with references to pos
              std::vector<std::vector<uint>> & poly_tex,      // polygons with references to tex
              std::vector<std::vector<uint>> & poly_nor,      // polygons with references to nor
              std::vector<Color>             & poly_col,      // per polygon colors
              std::vector<int>               & poly_lab,      // per polygon labels (cluster by OBJ groups "g")
              std::string                    & diffuse_path,  // path of the image encoding the diffuse  texture component
              std::string                    & specular_path, // path of the image encoding the specular texture component
              std::string                    & normal_path)   // path of the image encoding the normal   texture component
{
    setlocale(LC_NUMERIC, "en_US.UTF-8"); // makes sure "." is the decimal separator

    pos.clear();
    tex.clear();
    nor.clear();
    poly_pos.clear();
    poly_tex.clear();
    poly_nor.clear();
    poly_col.clear();
    poly_lab.clear();
    diffuse_path.clear();
    specular_path.clear();
    normal_path.clear();

    std::ifstream f(filename);
    if(!f.is_open())
    {
        std::cerr << "ERROR : " << __FILE__ << ", line " << __LINE__ << " : read_OBJ() : couldn't open input file " << filename << std::endl;
        exit(-1);
    }

    int fresh_label = 0;
    std::map<std::string,Color> color_map;
    Color curr_color = Color::WHITE();     // set WHITE as default color
    bool has_per_face_color = false;
    bool has_groups         = false;

    std::string line;
    while(std::getline(f,line))
    {
        switch(line[0])
        {
            case 'v':
            {
                // http://stackoverflow.com/questions/16839658/printf-width-specifier-to-maintain-precision-of-floating-point-value
                //
                double a, b, c;
                     if(sscanf(line.data(), "v  %lf %lf %lf", &a, &b, &c) == 3) pos.push_back(vec3d(a,b,c));
                else if(sscanf(line.data(), "vt %lf %lf %lf", &a, &b, &c) == 3) tex.push_back(vec3d(a,b,c));
                else if(sscanf(line.data(), "vt %lf %lf %lf", &a, &b, &c) == 2) tex.push_back(vec3d(a,b,0));
                else if(sscanf(line.data(), "vn %lf %lf %lf", &a, &b, &c) == 3) nor.push_back(vec3d(a,b,c));
                break;
            }

            case 'f':
            {
                line = line.substr(1,line.size()-1); // discard the 'f' letter
                std::istringstream ss(line);
                std::vector<uint> p_pos, p_tex, p_nor;
                for(std::string sub_str; ss >> sub_str;)
                {
                    int v_pos, v_tex, v_nor;
                    read_point_id(strdup(sub_str.c_str()), v_pos, v_tex, v_nor);
                    if (v_pos >= 0) p_pos.push_back(v_pos);
                    if (v_tex >= 0) p_tex.push_back(v_tex);
                    if (v_nor >= 0) p_nor.push_back(v_nor);
                }
                if (!p_tex.empty()) poly_tex.push_back(p_tex);
                if (!p_nor.empty()) poly_nor.push_back(p_nor);
                if (!p_pos.empty())
                {
                    poly_pos.push_back(p_pos);
                    poly_col.push_back(curr_color);
                }
                poly_lab.push_back(fresh_label);
                break;
            }

            case 'u':
            {
                char mat_c[1024];
                if (sscanf(line.data(), "usemtl %s", mat_c) == 1)
                {
                    auto query = color_map.find(std::string(mat_c));
                    if (query != color_map.end())
                    {
                        curr_color = query->second;
                    }
                    else std::cerr << "WARNING: could not find material: " << mat_c << std::endl;
                }
                break;
            }

            case 'm':
            {
                char mtu_c[1024];
                if(sscanf(line.data(), "mtllib %[^\n]s", mtu_c) == 1)
                {
                    std::string s0(filename);
                    std::string s1(mtu_c);
                    std::string s2 = get_file_path(s0) + get_file_name(s1);

                    // this fix shouldn't be here, but...
                    // https://stackoverflow.com/questions/1279779/what-is-the-difference-between-r-and-n
                    if(!s2.empty() && s2[s2.size()-1]=='\r')
                    {
                        s2.erase(s2.size()-1);
                    }

                    if(read_MTU(s2.c_str(), color_map, diffuse_path, specular_path, normal_path))
                    {
                        has_per_face_color = true;
                    }
                }
                break;
            }

            case 'g':
            {
                has_groups = true;
                fresh_label++;
                break;
            }
        }
    }
    f.close();

    if(!has_per_face_color) poly_col.clear();
    if(!has_groups)         poly_lab.clear();
}

1
2
3
4
5

GLcanvas gui;
SurfaceMeshControls<DrawableTrimesh<>> menu(&m, &gui);
gui.push(&m);
gui.push(&menu);
return gui.launch();

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

class GLcanvas
{
    public:

        GLFWwindow                        *window;
        std::vector<const DrawableObject*> drawlist;
        std::vector<Marker>                markers;
        std::vector<SideBarItem*>          side_bar_items;
        bool                               show_side_bar      = false;
        bool                               lazy_polling        = true; // wait for events if true, regular polling otherwise
        Color                              color_background   = Color::WHITE();
        float                              side_bar_width     = 0.2f;
        float                              side_bar_alpha     = 1.f;
        float                              font_size          = 13.f;
        bool                               show_axis          = false;
        bool                               depth_cull_markers = true; // skip occluded 3D markers, testing their depth with the Z-buffer
        double                             DPI_factor;

        //::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

        // ImGui and GLFW do not yet handle multi windows properly.
        // This variable ensures that only one window will create
        // and handle the ImGui context. As a result, only that
        // window will benefit from the functionalities implemented
        // with ImGui, such as the side bar with visual controls and
        // the visual markers
        bool owns_ImGui = false;

        //::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

        Camera<double> camera;
        Trackball      trackball;

        //::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

GLcanvas::GLcanvas(const int width, const int height)
{
    // make sure that only the first window
    // in the app creates a ImGui context
    static int window_count = 0;
    owns_ImGui = (window_count==0);
    window_count++;

    camera = Camera<double>(width,height);
    camera.toggle_persp_ortho(); // make it perspective

    glfwInit();
    window = glfwCreateWindow(width, height, "", NULL, NULL);
    if(!window) glfwTerminate();

    glfwSwapInterval(1); // enable vsync

    // pass the window handler (i.e. this whole class) to the GLFW window,
    // so that I can access the methods of GLcanvas2from within the static
    // callbakcs defined within the class itself....
    // Despite ugly, I do not foresee better ways to interact with the
    // GLFW event handling system!
    // See:
    //      https://github.com/glfw/glfw/issues/815
    //      https://stackoverflow.com/questions/55145966/what-does-glfwgetwindowuserpointer-do
    glfwSetWindowUserPointer(window, (void*)this);

    // register GLFW callbacks
    glfwSetWindowSizeCallback (window, window_size_event );
    glfwSetKeyCallback        (window, key_event         );
    glfwSetMouseButtonCallback(window, mouse_button_event);
    glfwSetCursorPosCallback  (window, cursor_event      );
    glfwSetScrollCallback     (window, scroll_event      );

    // intialize OpenGL environment
    glfwMakeContextCurrent(window);
    glEnable(GL_LIGHTING);
    glEnable(GL_LIGHT0);
    glEnable(GL_DEPTH_TEST);
    glDepthFunc(GL_LEQUAL);

    // to handle high DPI displays
    update_DPI_factor();

    if(owns_ImGui)
    {
        // initialize ImGui backend for visual controls...
        IMGUI_CHECKVERSION();
        ImGui::CreateContext();
        ImGui::StyleColorsDark();
        ImGui_ImplGlfw_InitForOpenGL(window, false);
        ImGui_ImplOpenGL2_Init();
        // NOTE: since ImGui does not support dynamic font sizing, I am using oversized fonts
        // (10x) to account for zoom factor (downscaling is visually better than upscaling)
        // https://github.com/ocornut/imgui/issues/797
        ImGuiIO &io = ImGui::GetIO();
        io.IniFilename = NULL;
        io.Fonts->Clear();
        io.Fonts->AddFontFromMemoryCompressedTTF(droid_sans_data, droid_sans_size, font_size*10.f);
        io.FontGlobalScale = 0.1f; // compensate for high-res fonts
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

int GLcanvas::launch(std::initializer_list<GLcanvas*> additional_windows)
{
    while(true)
    {
        glfwMakeContextCurrent(window);
        draw();
        if(glfwWindowShouldClose(window)) return EXIT_SUCCESS;

        for(auto it=additional_windows.begin(); it!=additional_windows.end(); ++it)
        {
            glfwMakeContextCurrent((*it)->window);
            (*it)->draw();
            if(glfwWindowShouldClose((*it)->window)) return EXIT_SUCCESS;
        }

        if(lazy_polling) glfwWaitEvents();
        else             glfwPollEvents();
    }
    return EXIT_SUCCESS;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

void GLcanvas::draw()
{
    glfwMakeContextCurrent(window);
    glClearColor(color_background.r,
                 color_background.g,
                 color_background.b,
                 color_background.a);
    glClear(GL_COLOR_BUFFER_BIT|GL_DEPTH_BUFFER_BIT);

    // draw your 3D scene
    for(auto obj : drawlist) obj->draw();

    if(owns_ImGui)
    {
        // draw markers and visual controls
        ImGui_ImplOpenGL2_NewFrame();
        ImGui_ImplGlfw_NewFrame();
        ImGui::NewFrame();
        draw_markers();
        if(show_side_bar) draw_side_bar();
        ImGui::Render();
        ImGui_ImplOpenGL2_RenderDrawData(ImGui::GetDrawData());
    }

    if(show_axis) draw_axis();

    glfwSwapBuffers(window);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

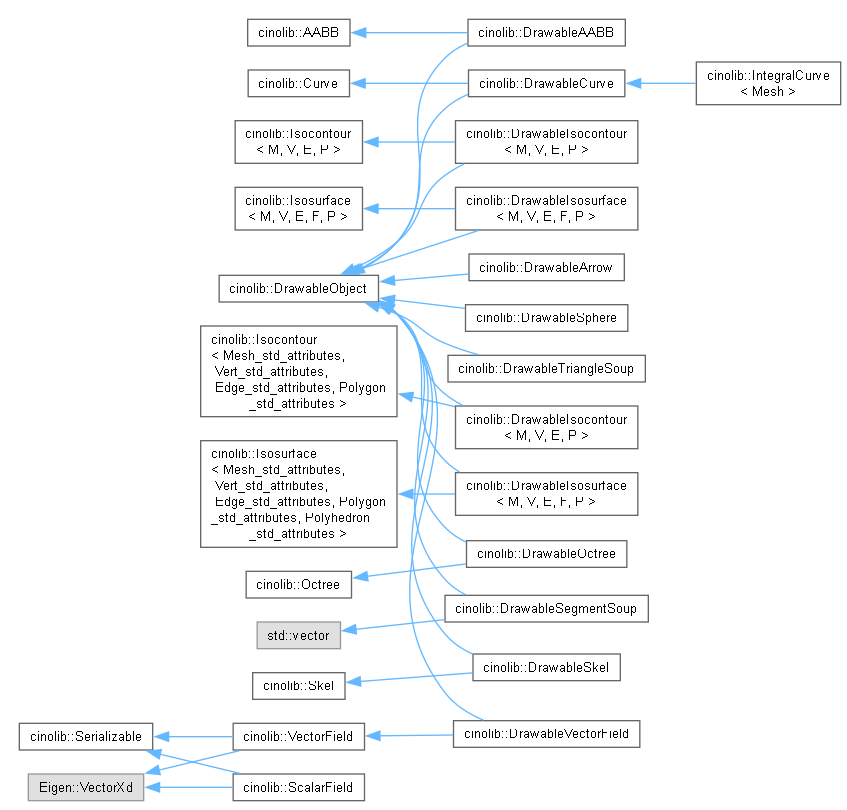

class DrawableObject
{
    public :

        explicit  DrawableObject(){}
        virtual  ~DrawableObject(){}

        //::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

        virtual  ObjectType  object_type()                    const = 0;
        virtual  void        draw(const float scene_size = 1) const = 0;  // do rendering
        virtual  vec3d       scene_center()                   const = 0;  // get position in space
        virtual  float       scene_radius()                   const = 0;  // get size (approx. radius of the bounding sphere)
};

1
2
3
4
5
6
7
8
9

void AbstractDrawablePolygonMesh<Mesh>::draw(const float) const
{
    glMatrixMode(GL_MODELVIEW);
    glPushMatrix();
    glMultMatrixd(this->T.transpose()._vec);
    render(drawlist_marked);
    render(drawlist);
    glPopMatrix();
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

void render(const RenderData & data)
{
    data.material.apply();

    glLightModeli(GL_LIGHT_MODEL_TWO_SIDE, GL_TRUE);
    glEnable(GL_DEPTH_TEST);
    glDisable(GL_CULL_FACE);
    glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);
    glEnable(GL_BLEND);
    glPolygonOffset(1.0, 1);

    if(data.draw_mode & DRAW_TRIS)
    {
        if(data.draw_mode & DRAW_TRI_POINTS)
        {
            glDisable(GL_LIGHTING);
            render_tris(data);
        }
        else if(data.draw_mode & DRAW_TRI_SMOOTH)
        {
            glEnable(GL_LIGHTING);
            glShadeModel(GL_SMOOTH);
            render_tris(data);
        }
        else // default: FLAT shading
        {
            glEnable(GL_LIGHTING);
            glShadeModel(GL_SMOOTH); // flatness is given by input normals
            render_tris(data);
        }

        if(data.draw_mode & DRAW_SEGS)
        {
            glDisable(GL_POLYGON_OFFSET_FILL);
            glPushAttrib(GL_POLYGON_BIT);
            glPolygonMode(GL_FRONT_AND_BACK, GL_LINE);
            render_segs(data);
            glPopAttrib();
            glEnable(GL_POLYGON_OFFSET_FILL);
        }
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

void render_tris(const RenderData & data)
{
    if(data.draw_mode & DRAW_TRI_POINTS)
    {
        glEnableClientState(GL_COLOR_ARRAY);
        glColorPointer(4, GL_FLOAT, 0, data.tri_v_colors.data());
        glEnableClientState(GL_VERTEX_ARRAY);
        glVertexPointer(3, GL_FLOAT, 0, data.tri_coords.data());
        glPointSize(data.seg_width);
        glDrawArrays(GL_POINTS, 0, (GLsizei)(data.tri_coords.size()/3));
        glDisableClientState(GL_VERTEX_ARRAY);
        glDisableClientState(GL_COLOR_ARRAY);
    }
    else
    {
        if(data.draw_mode & DRAW_TRI_TEXTURE1D)
        {
            glBindTexture(GL_TEXTURE_1D, data.texture.id);
            glEnableClientState(GL_TEXTURE_COORD_ARRAY);
            glTexCoordPointer(1, GL_FLOAT, 0, data.tri_text.data());
            glColor3f(1,1,1);
            glEnable(GL_COLOR_MATERIAL);
            glEnable(GL_TEXTURE_1D);
        }
        else if(data.draw_mode & DRAW_TRI_TEXTURE2D)
        {
            glBindTexture(GL_TEXTURE_2D, data.texture.id);
            glEnableClientState(GL_TEXTURE_COORD_ARRAY);
            glTexCoordPointer(2, GL_FLOAT, 0, data.tri_text.data());
            glColor3f(1,1,1);
            glEnable(GL_COLOR_MATERIAL);
            glEnable(GL_TEXTURE_2D);
        }
        else
        {
            glEnable(GL_COLOR_MATERIAL);
            glEnableClientState(GL_COLOR_ARRAY);
            glColorPointer(4, GL_FLOAT, 0, data.tri_v_colors.data());
        }
        glEnableClientState(GL_VERTEX_ARRAY);
        glVertexPointer(3, GL_FLOAT, 0, data.tri_coords.data());
        glEnableClientState(GL_NORMAL_ARRAY);
        glNormalPointer(GL_FLOAT, 0, data.tri_v_norms.data());
        glDrawElements(GL_TRIANGLES, (GLsizei)data.tris.size(), GL_UNSIGNED_INT, data.tris.data());
        glDisableClientState(GL_VERTEX_ARRAY);
        glDisableClientState(GL_NORMAL_ARRAY);
        if(data.draw_mode & DRAW_TRI_TEXTURE1D)
        {
            glDisableClientState(GL_TEXTURE_COORD_ARRAY);
            glDisable(GL_TEXTURE_1D);
            glEnable(GL_COLOR_MATERIAL);
        }
        else if(data.draw_mode & DRAW_TRI_TEXTURE2D)
        {
            glDisableClientState(GL_TEXTURE_COORD_ARRAY);
            glDisable(GL_TEXTURE_2D);
            glEnable(GL_COLOR_MATERIAL);
        }
        else
        {
            glDisableClientState(GL_COLOR_ARRAY);
            glDisable(GL_COLOR_MATERIAL);
        }
    }
}

1
2
3
4
5
6
7
8
9

实现 Load/Save 模型 (obj & stl)
实现对 Workspace 的 Load/Save （加载/读取工作状态）
实现对 三角形/四边形/四面体/六面体 模型的渲染查看
查看器 缩放/旋转
三维等高线  -- 算法1
四面体化  -- 算法2
重网格化  -- 算法3
环境光遮蔽  -- 算法4
LSCM （最小平方共形映射）  -- 算法5

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

Canvas : 基础画布类，封装各类 ImGUI 与 OpenGL 相关的内容

GuiComponent : 界面组件基类

Mesh : 网格体基类
    PolygonMesh： 多边形网格体
        TriangleMesh：三角形网格体
        QuadrilateralMesh: 四边形网格体
    PolyhedralMesh：多面体网格体
        TetrahedronMesh: 四面体网格体
        HexahedronMesh: 六面体网格体

一些接口：
    ISerializable : 实现序列化/反序列化
    IDrawable: 可在画布上进行绘制的对象
